Minus NX 12S Made in Canada

Unavailable

  • Made in Canada
Compare + Added! Delete

Select your specs

Technical
Specifications

Minus NX 12S

Compare + Added! Delete

Manufacturing

Designed & Assembled in Canada

Download the Manual

Frame

  • FRAME Aluminum Optimum G04
  • FORK Devinci Full Carbon
  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Cockpit

  • HANDLEBAR V2 Pro | B:35mm | R:15mm | W:780mm
  • STEM V2 Pro | B:35mm | L:50mm | 0°
  • SADDLE Devinci
  • SEATPOST TranzX Dropper | 31.6mm | 1x Lever
  • GRIPS Devinci Performance | w/lock-on

Brakes

  • FRONT BRAKE SRAM Level T | 2 Pistons
  • REAR BRAKE SRAM Level T | 2 Pistons
  • ROTORS SRAM Centerline | 180mm

Drivetrain

  • REAR DERAILLEUR SRAM NX Eagle | 12s
  • REAR SHIFTER SRAM NX Eagle 12s
  • CRANKSET SRAM NX Eagle | DUB | 30T
  • BOTTOM BRACKET SRAM DUB | BSA | 100mm
  • CASSETTE SRAM PG1230 | 12s | 11-50T | HG
  • CHAIN SRAM SX Eagle | 12s

Wheels

  • FRONT RIM V2 Comp | 86mm inner
  • FRONT HUB Formula DC-150 | Sealed | 6bolts | TA 15x150mm
  • REAR RIM V2 Comp | 86mm inner
  • REAR HUB Formula DHT-197 | Sealed | 6bolts | TA 12x197mm | SH
  • SPOKES Sapim Stainless 14G w/Nylok

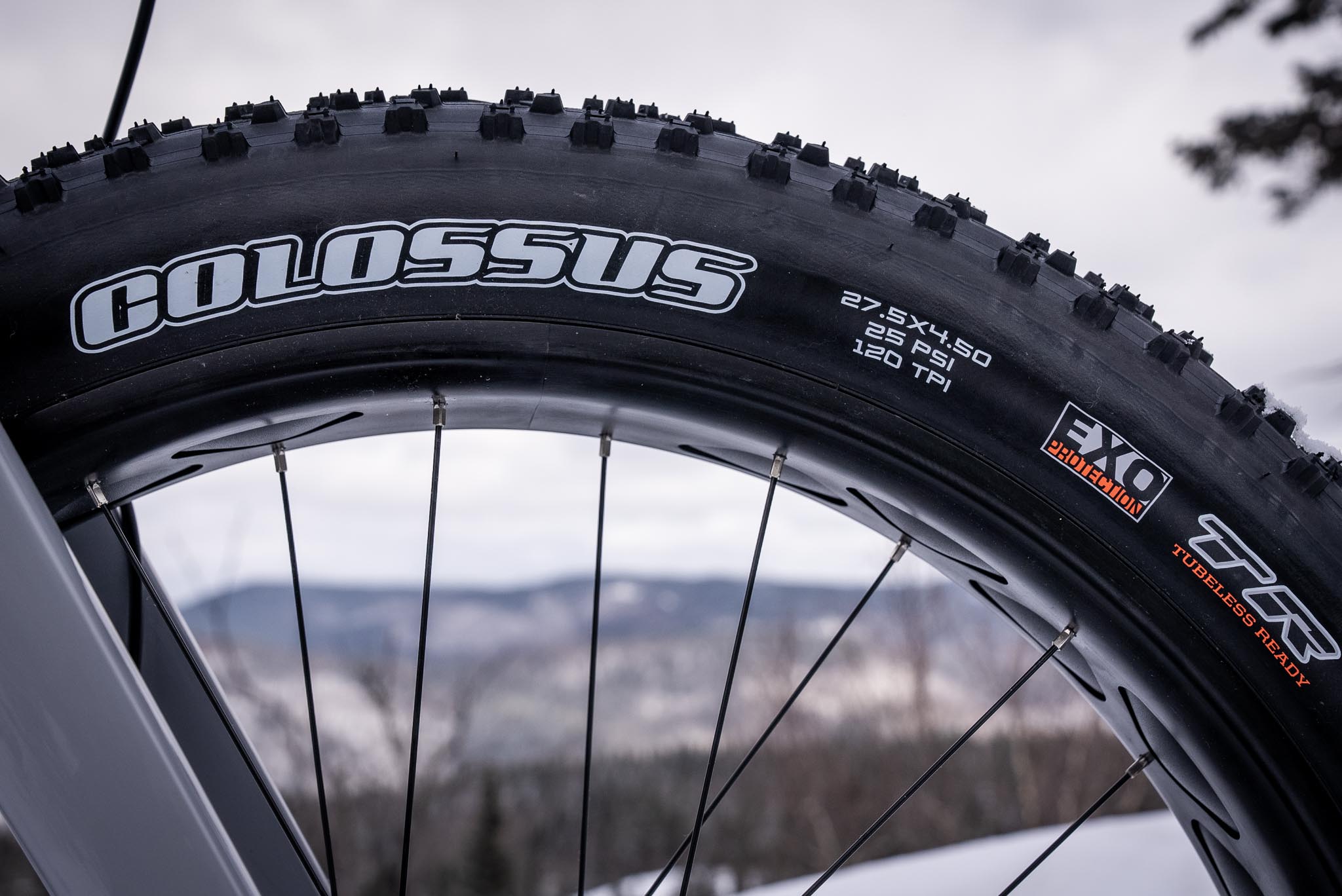

  • TIRES Maxxis Colossus 27x4.50" Exo, TR

Weight

15.46 kg / 34.08 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frame &
Geometry

*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.

A - ST (MM)
B - SA (DEG)
C - HA (DEG)
D - TT (MM)
E - REACH (MM)
F - CS (MM)
G - WB (MM)
H - BBH (MM)
I - SOH (MM)
J - STACK (MM)
K - HT (MM)
RIDER HEIGHT (CM)

Full range

1 bikes

Selected bike

Minus NX 12S

Unavailable

  • Made in Canada
Compare + Added! Delete

Carbon Fork *on NX model

Stiff and ultralight for unmatched handing.

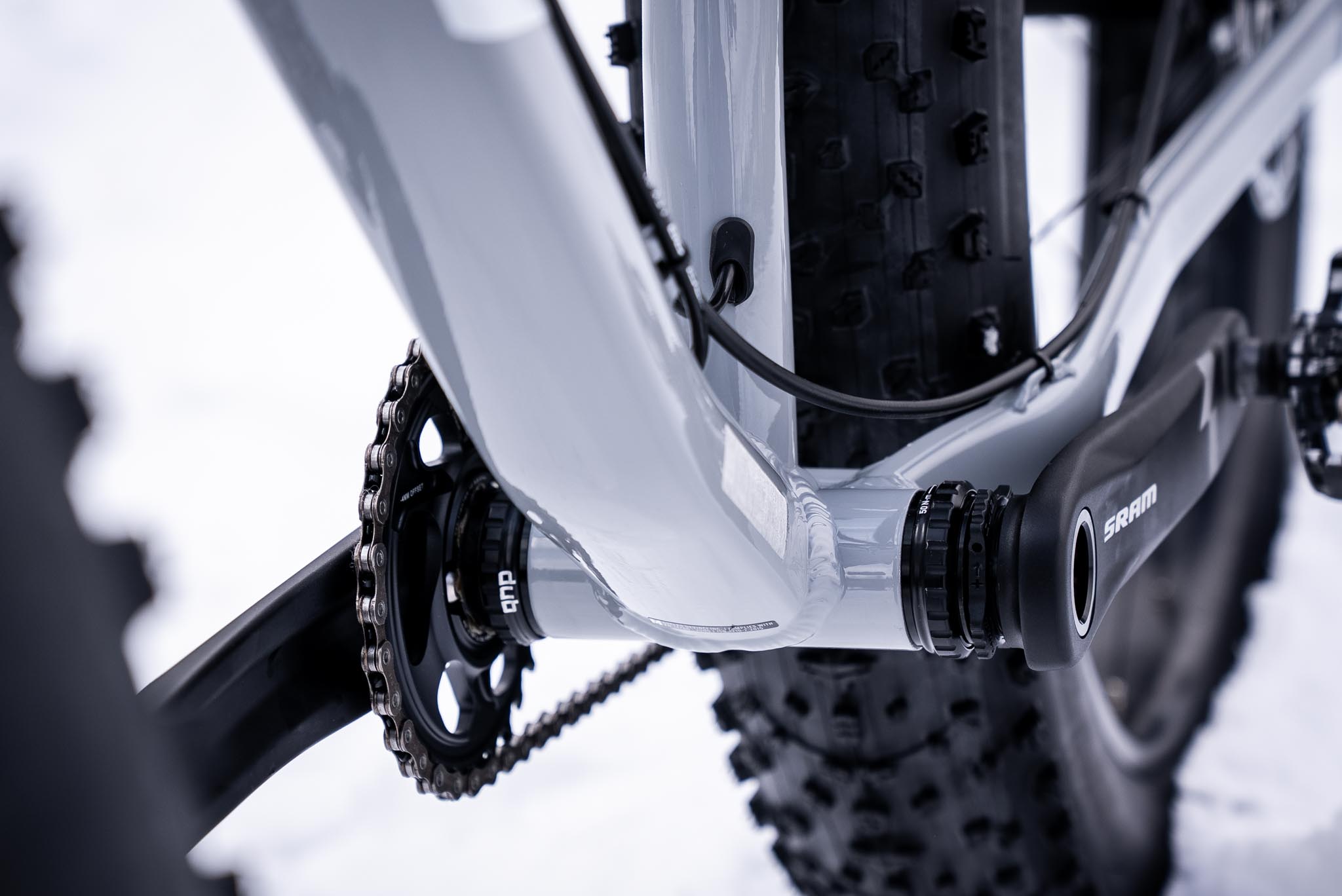

Threaded BB

Threaded BB for headache-free removal and easy maintenance.

Updated Geometry

Modern fat bike geometry featuring a longer reach and slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.

Lifetime warranty

Riding passions last a lifetime. Now your bike does too.

Dropper post compatibility

31.6mm dropper post
S: 150 M: 175 L: 200 XL :200

12 x 197mm rear spacing

Frames designed around 12 x 197mm offer ample tire clearance so you can take advantage of improved wheel stiffness.

26 x 4.8'' Maximum tire clearance

26 x 4.8 provide a large footprint for added traction in loose condition like snow.

Dual Thru-Axles

Front and rear thru-axles provide increased stiffness at the wheels, which means more precise steering and improved control.
