Django

Django Deore 12S

Unavailable

  • Rock Shox Revelation RC Fork
  • Rock Shox Deluxe RL Rear Shock
  • TranzX Dropper post
Compare + Added! Delete

Select your specs

Technical
Specifications

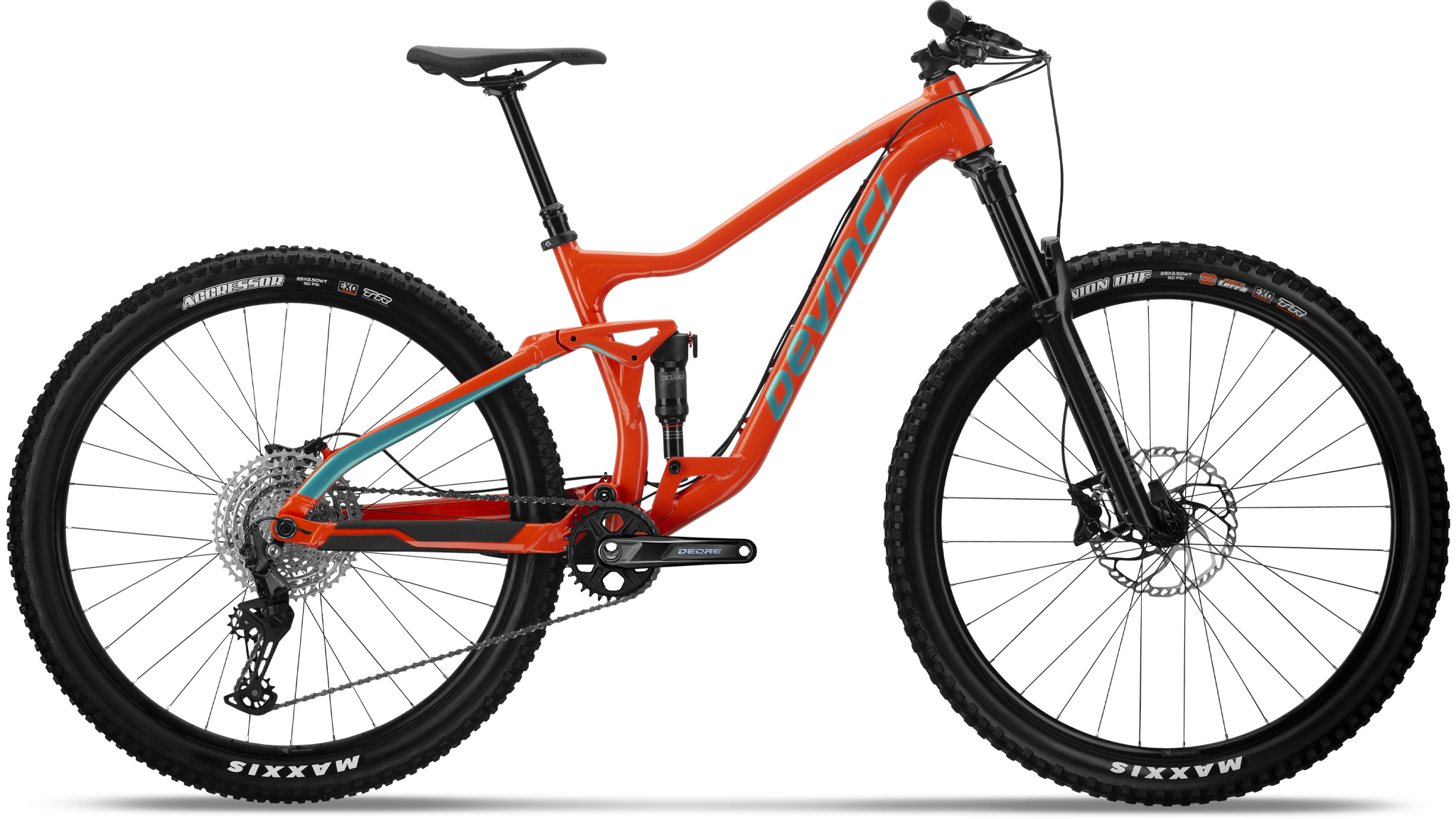

Django Deore 12S

Compare + Added! Delete

Manufacturing

Designed & Assembled in Canada

Download the Manual

Frame

  • FRAME Aluminum Optimum G04 120mm
  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Suspension

  • SUSPENSION FORK RockShox Revelation RC DebonAir 140 | 2T | 42 Offset
  • REAR SHOCK Rockshox Deluxe Select+ RL Debonair | 3T | 190x45

Cockpit

  • HANDLEBAR V2 Pro | B:35mm | R:15mm | W:780mm
  • STEM V2 Pro | B:35mm | L:50mm | 0°
  • SADDLE SDG FLY MTN
  • SEATPOST TranzX Dropper | 31.6mm | 1x Lever
  • GRIPS Devinci Performance | w/lock-on

Brakes

  • FRONT BRAKE Shimano Deore M4100/MT420 | 4 Pistons
  • REAR BRAKE Shimano Deore M4100/MT420 | 4 Pistons
  • FRONT ROTOR Shimano RT66 | 203mm
  • REAR ROTOR Shimano RT66 | 180mm

Drivetrain

  • REAR DERAILLEUR Shimano Deore M6100 | 12s
  • REAR SHIFTER Shimano Deore M6100 | 12s | I-spec EV
  • CRANKSET Shimano Deore M6130 | 32T | Superboost 157
  • BOTTOM BRACKET Shimano BB MT501 | BSA | 68/73mm
  • CASSETTE Shimano M6100 | 12s | 10-51T | Microspline
  • CHAIN Shimano Deore M6100 | 12s

Wheels

  • FRONT RIM V2 Comp | 29mm inner | TR
  • FRONT HUB Novatec D791SB-B15 | 6bolts | TA 15x110mm
  • REAR RIM V2 Comp | 29mm inner | TR
  • REAR HUB Novatec DH92SB-MS | 6bolts | TA 12x157mm | Microspline
  • SPOKES Sapim Stainless 14G w/Nylok
  • FRONT TIRE Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
  • REAR TIRE Maxxis Aggressor | 29x2.5wt | EXO TR

Weight

14.93 kg / 32.91 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

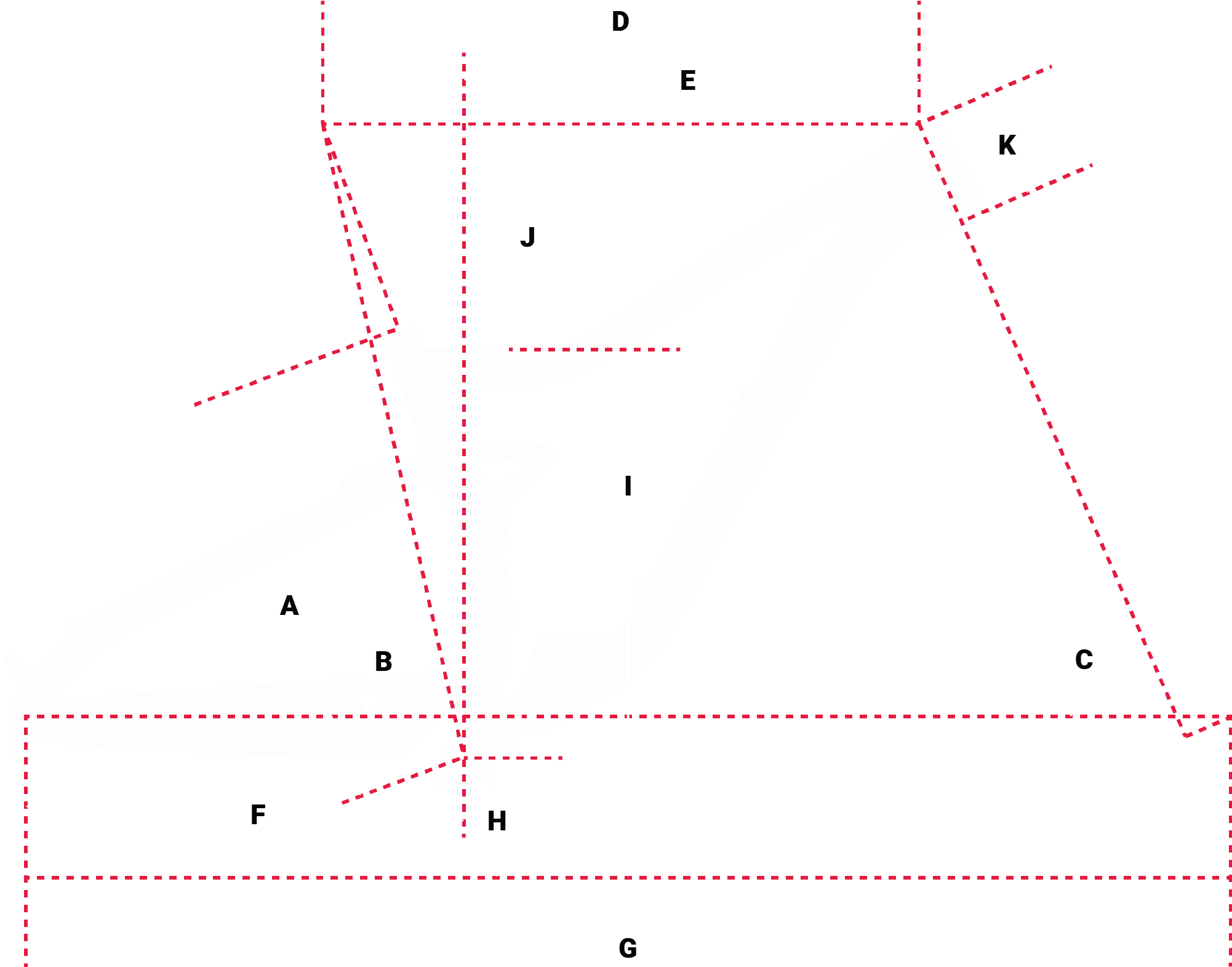

Frame &
Geometry

*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.

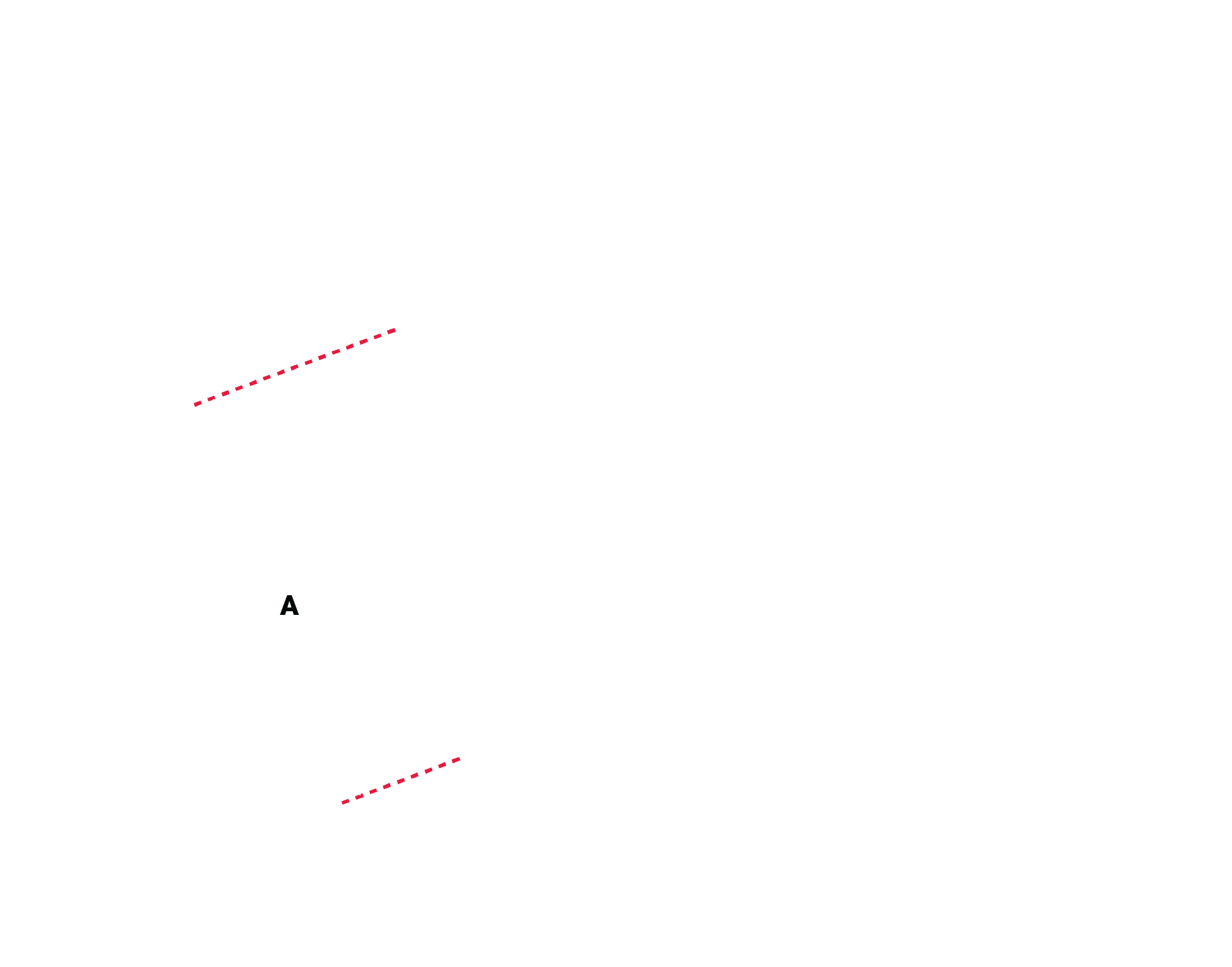

A - ST (MM)

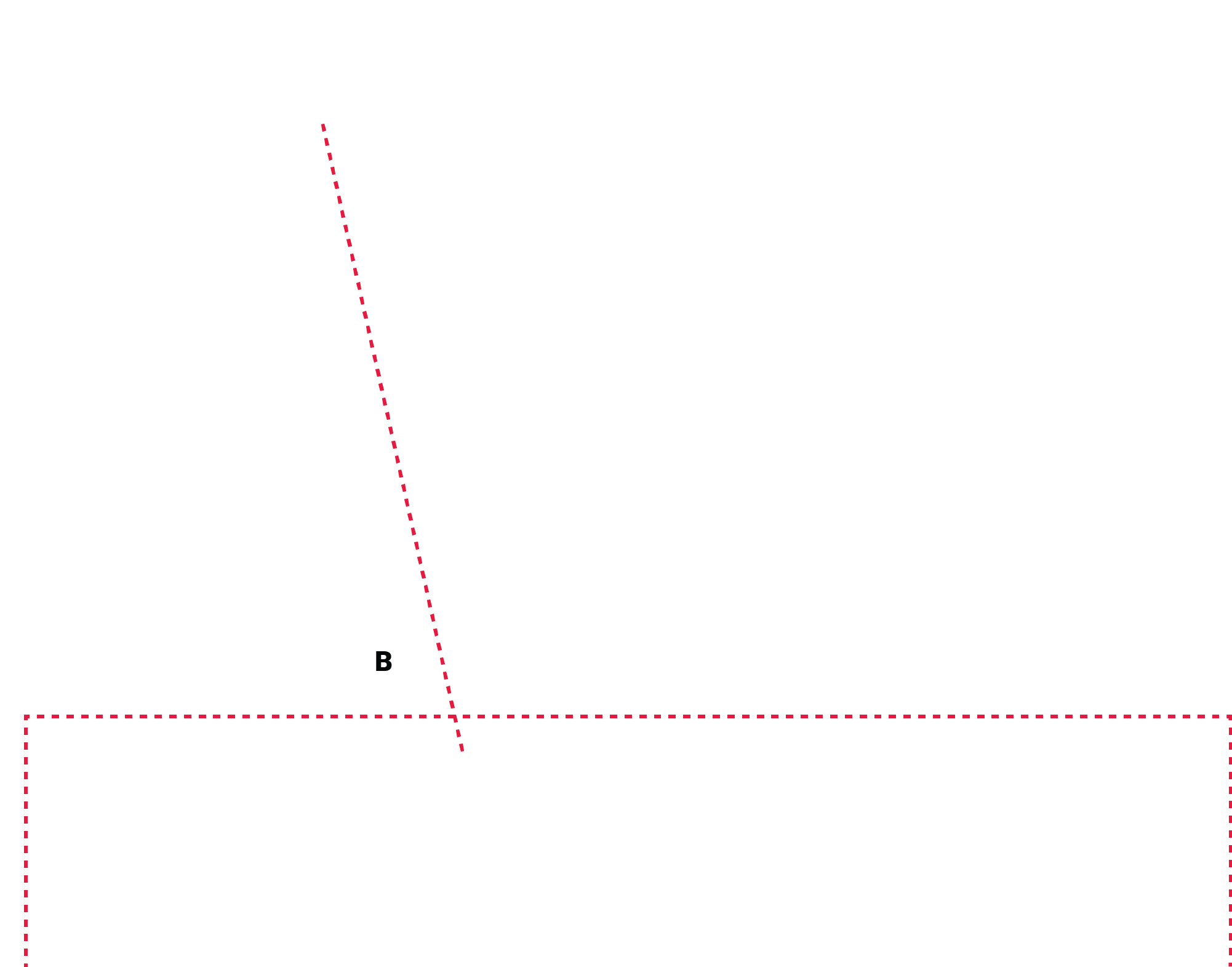

B - SA (DEG)

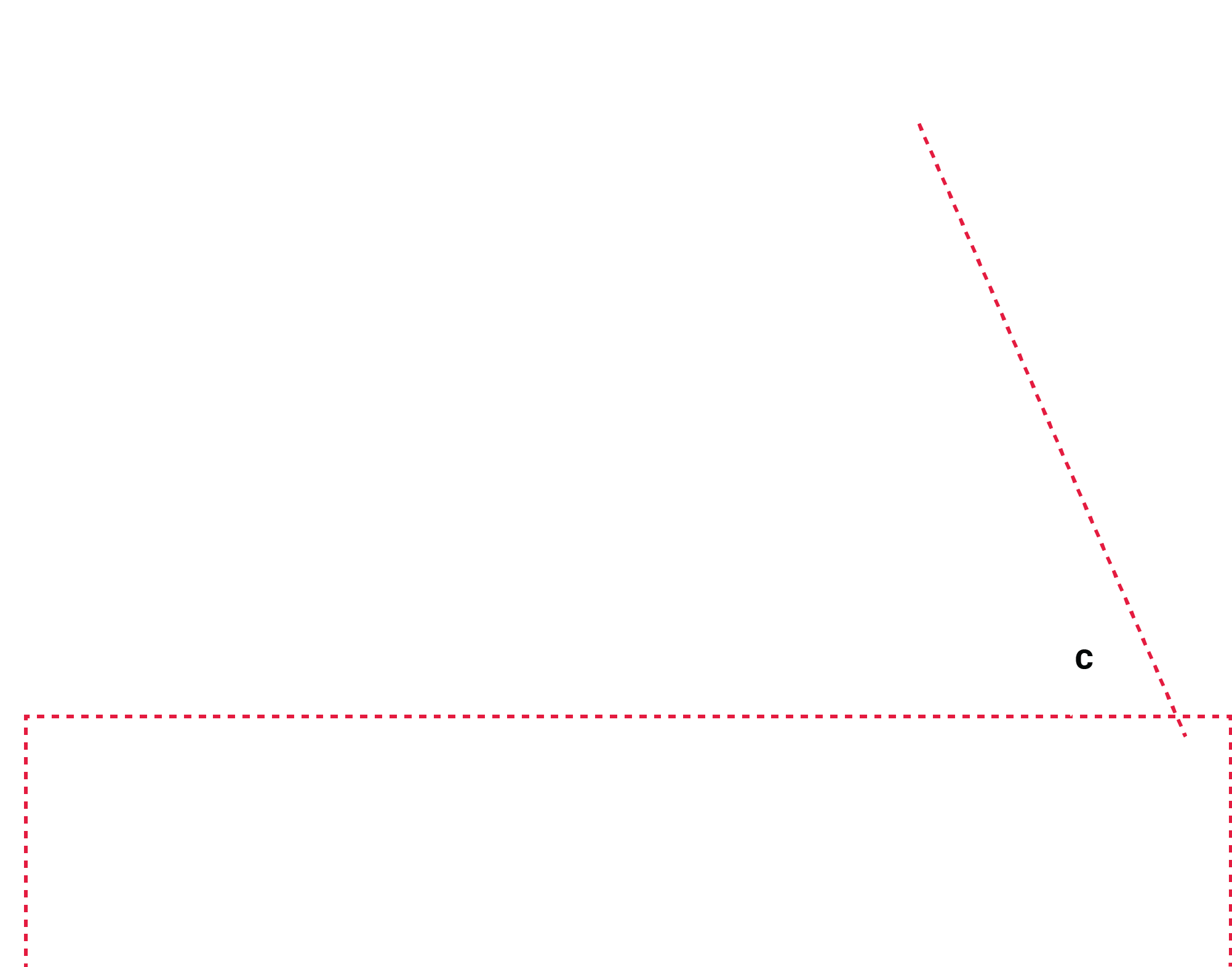

C - HA (DEG)

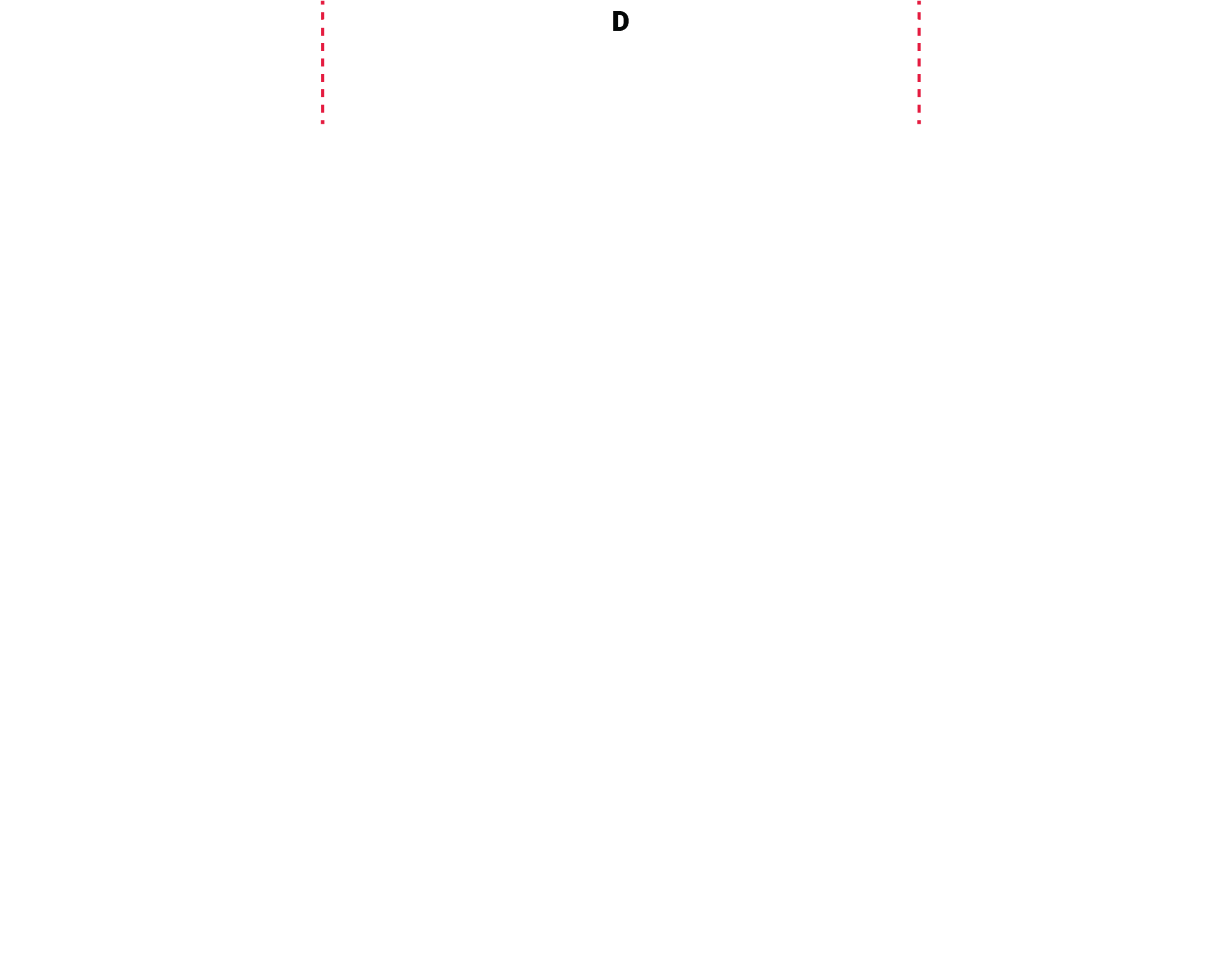

D - TT (MM)
E - REACH (MM)
F - CS (MM)
G - WB (MM)
H - BBH (MM)
I - SOH (MM)
J - STACK (MM)
K - HT (MM)
RIDER HEIGHT (CM)
BBD (MM)
RAKE (MM)
TRAIL (MM)
ACTUAL SA (DEG)
GROSSEUR PNEU ()
LONGUEUR FOURCHE (MM)
FC (MM)
Fox Transfer (MM)
RS Reverb (MM)

Full range

1 bikes

Selected bike

Django Deore 12S

Unavailable

  • Rock Shox Revelation RC Fork
  • Rock Shox Deluxe RL Rear Shock
  • TranzX Dropper post
Compare + Added! Delete

29 x 2.6 / 27.5 x 2.8'' Maximum tire clearance

Super Boost rear spacing provides massive tire clearance at 29x2.6 for capable mud ejection plus the traction you want when trails turn slick.

Cable holder / shock washer combo

User-friendly cable holder doubles as a lower shock washer for ultra-easy reassembly.

Rear pivot brake cable clip

Rear pivot brake cable clip complements streamlined architecture and shuns frame rubbing.

Double row bearing in linkage

Double-row, double-lip sealed bearings in linkage for precision movement and superior longevity.

2 bolts ISCG mount

Get-gnarly chain guide fortified for on-trail use and abuse.

Molded Polyurethane protector

High-density rock guard for optimal protection.

Light, capable frame weight/build

2,560g of trail riding muscle for lively acceleration and precision handling when trails turn to gnar.

Relocated geo adjust Flip Chip

Switch between Hi/Lo mode to customize ride characteristics. The flip chip is conveniently located at the base of the shock mount with less moving parts, meaning it's easier to use, especially if you want to conduct some on-trail experiments.

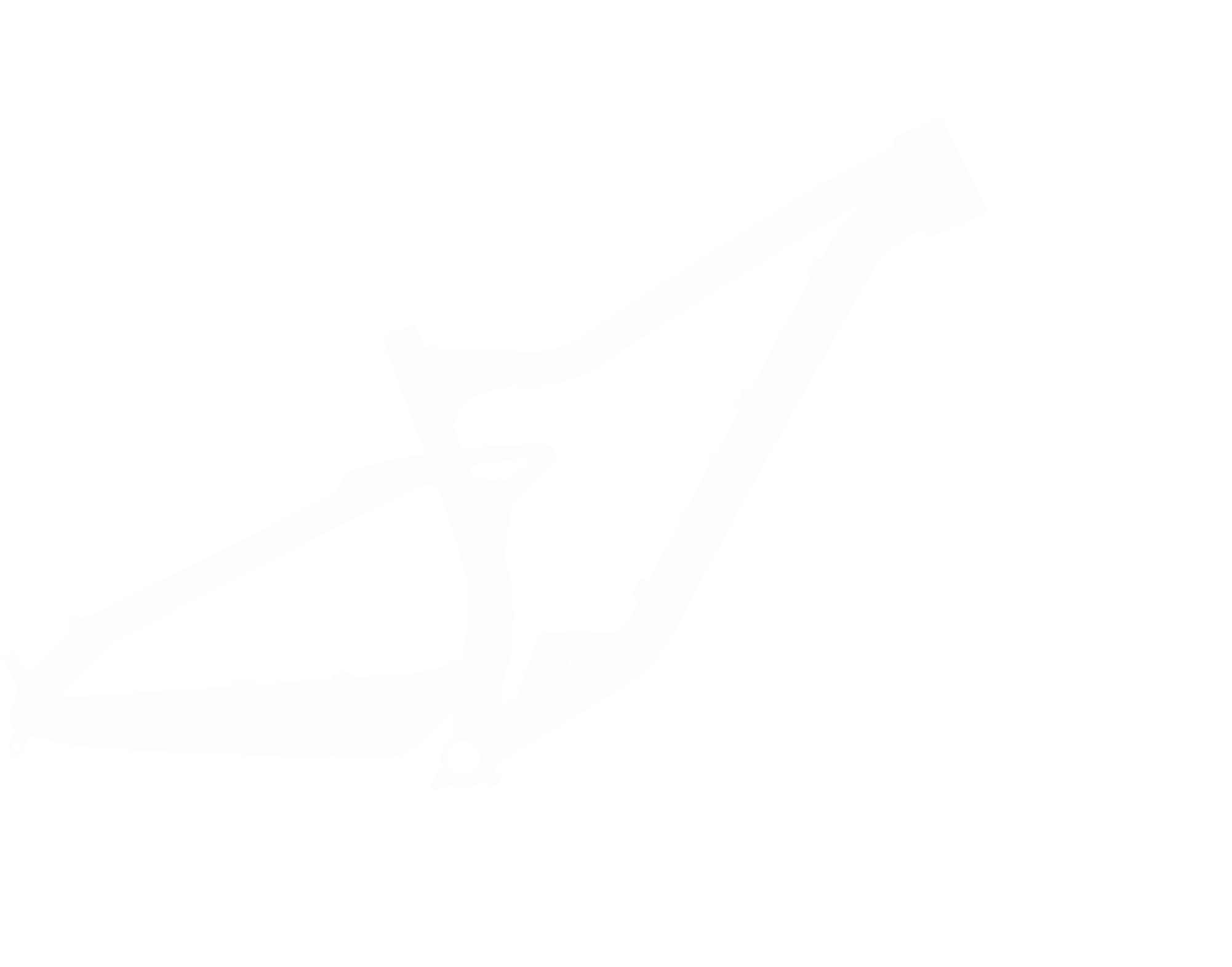

Aluminum 6061-T6 frame

Accomplished 6061-T6 platform for riders seeking premium performance at a wallet-friendly price.



Updated Geometry

Modern trail bike geometry featuring a 10mm longer reach and 1.5 degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.

Lifetime warranty

Riding passions last a lifetime. Now your bike does too.

Split Pivot

Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.
