Minus
Minus NX 12S Made in Canada
Unavailable
FAT BIKE

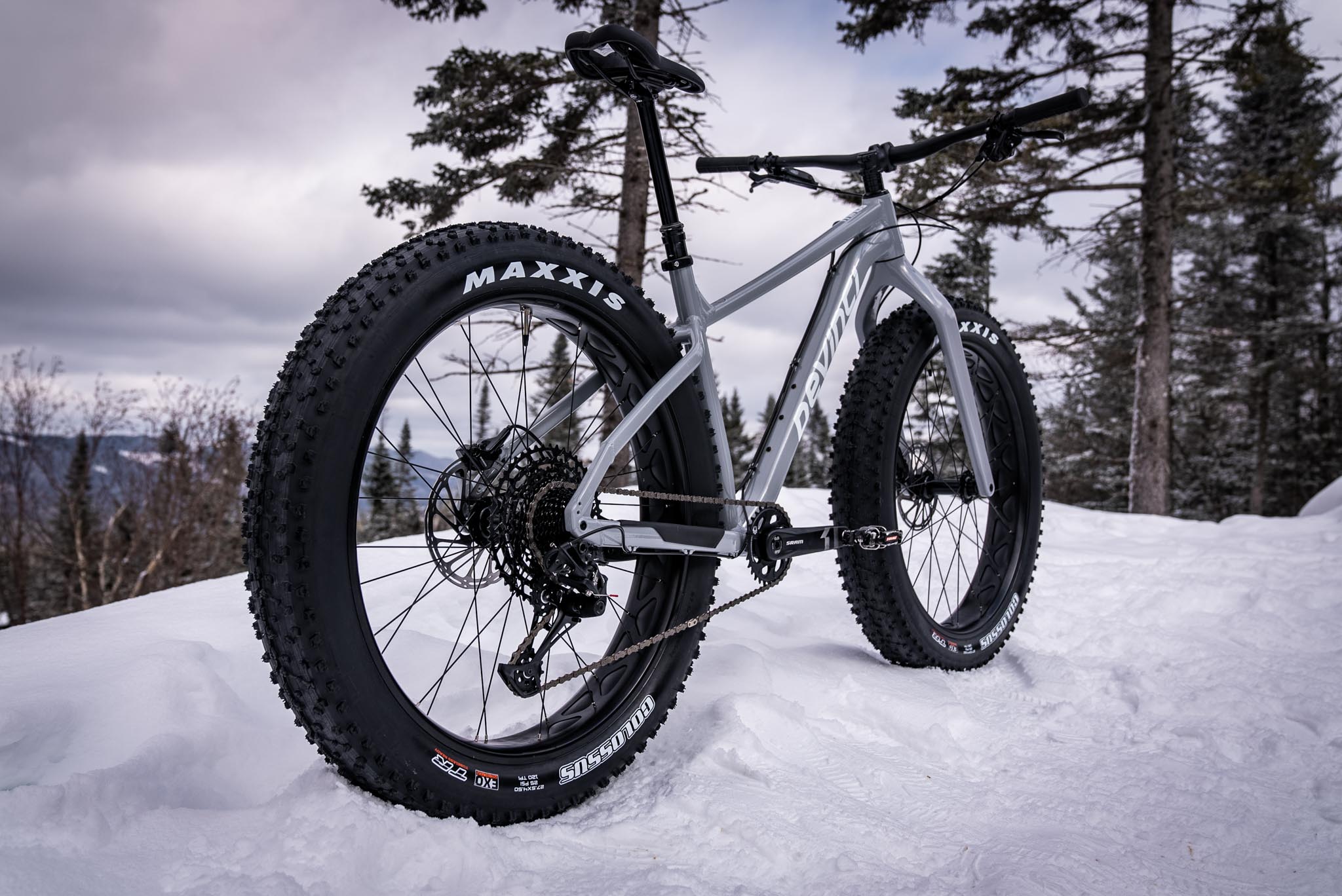

The Minus is a Made in Canada, mega-footprint snow destroyer that will make you rethink your next winter vacation. To ensure the Minus lives up to its name, every component is tested in deep winter conditions here in Chicoutimi, Canada. So you can trust the 1x drivetrain, powerful brakes and lightweight aluminum frame, and stay in control with low stand-over geometry and new XL sizing. No matter how slick, or cold, things get, the Minus fat bike is ready for more.
Technical
Specifications
Minus NX 12S
Manufacturing
Designed & Assembled in Canada
Frame
- FRAME Aluminum Optimum G04
- FORK Devinci Full Carbon
- HEADSET FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP Alloy CNC | 34.9mm
Cockpit
- HANDLEBAR V2 Pro | B:35mm | R:15mm | W:780mm
- STEM V2 Pro | B:35mm | L:50mm | 0°
- SADDLE Devinci
- SEATPOST TranzX Dropper | 31.6mm | 1x Lever
- GRIPS Devinci Performance | w/lock-on
Brakes
- FRONT BRAKE SRAM Level T | 2 Pistons
- REAR BRAKE SRAM Level T | 2 Pistons
- ROTORS SRAM Centerline | 180mm
Drivetrain
- REAR DERAILLEUR SRAM NX Eagle | 12s
- REAR SHIFTER SRAM NX Eagle 12s

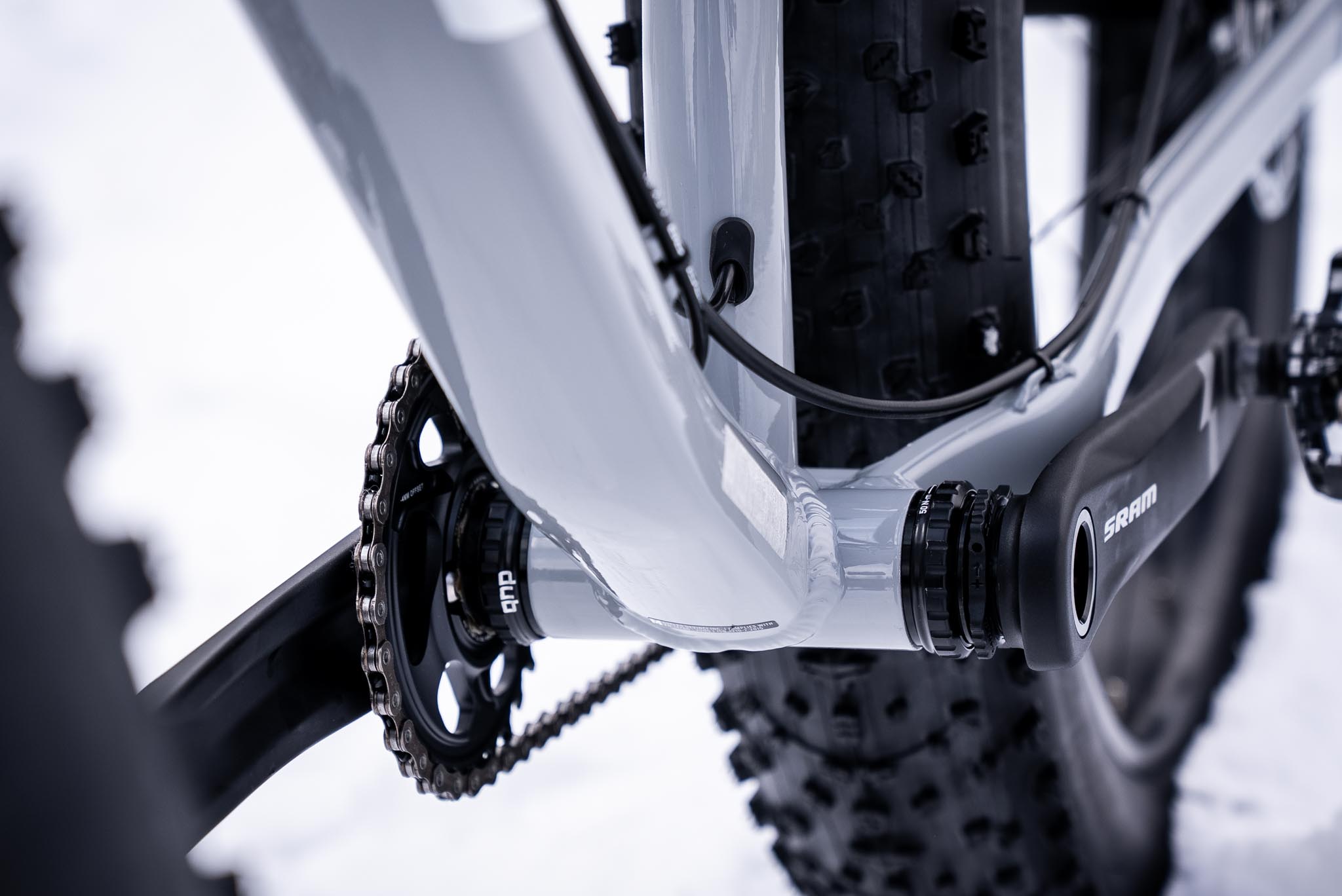

- CRANKSET SRAM NX Eagle | DUB | 30T
- BOTTOM BRACKET SRAM DUB | BSA | 100mm
- CASSETTE SRAM PG1230 | 12s | 11-50T | HG
- CHAIN SRAM SX Eagle | 12s
Wheels
- FRONT RIM V2 Comp | 86mm inner
- FRONT HUB Formula DC-150 | Sealed | 6bolts | TA 15x150mm
- REAR RIM V2 Comp | 86mm inner
- REAR HUB Formula DHT-197 | Sealed | 6bolts | TA 12x197mm | SH
- SPOKES Sapim Stainless 14G w/Nylok

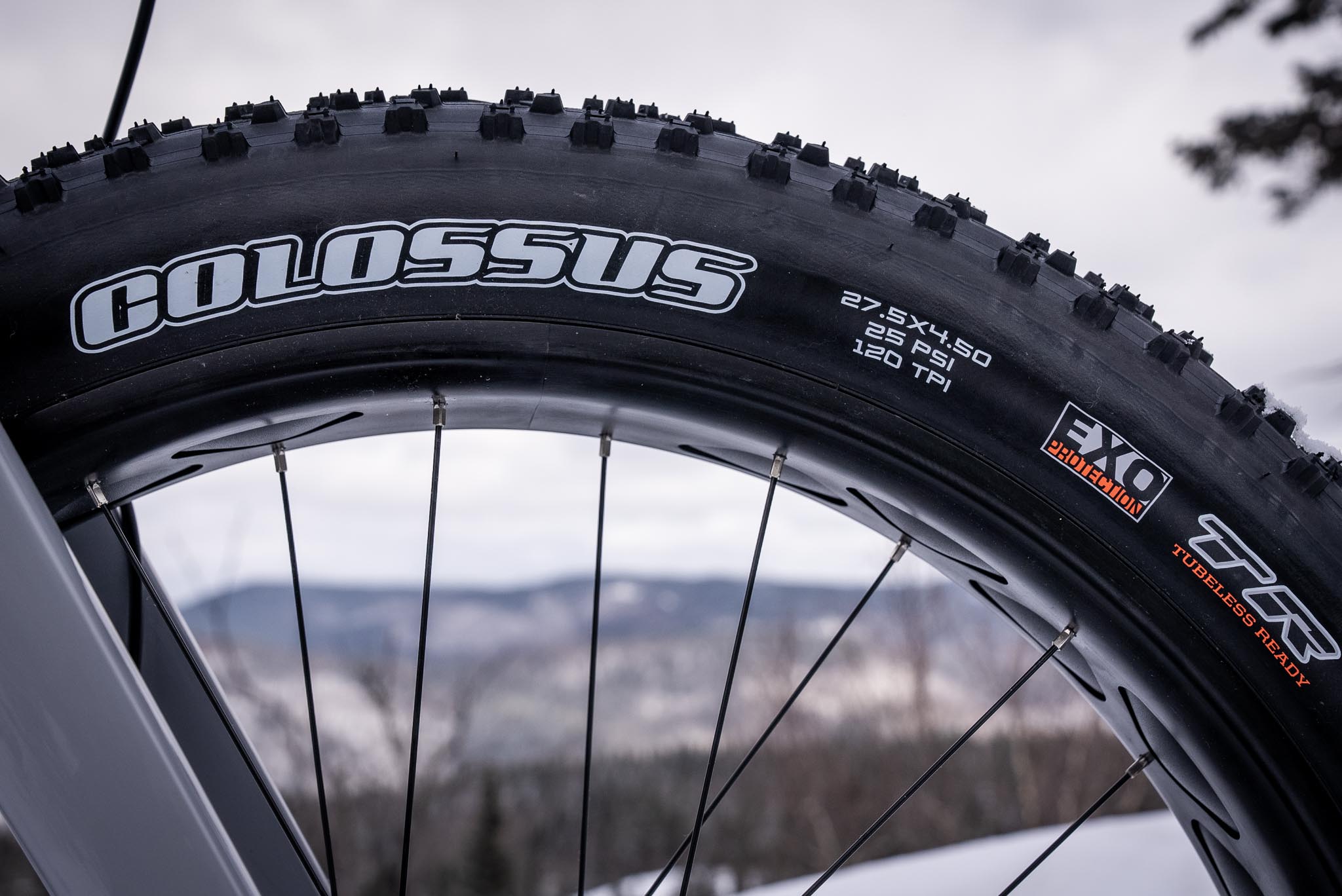

- TIRES Maxxis Colossus 27x4.50" Exo, TR
Weight
15.46 kg / 34.08 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
Frame &
Geometry
*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.
Full range
1 bikes
Technologies

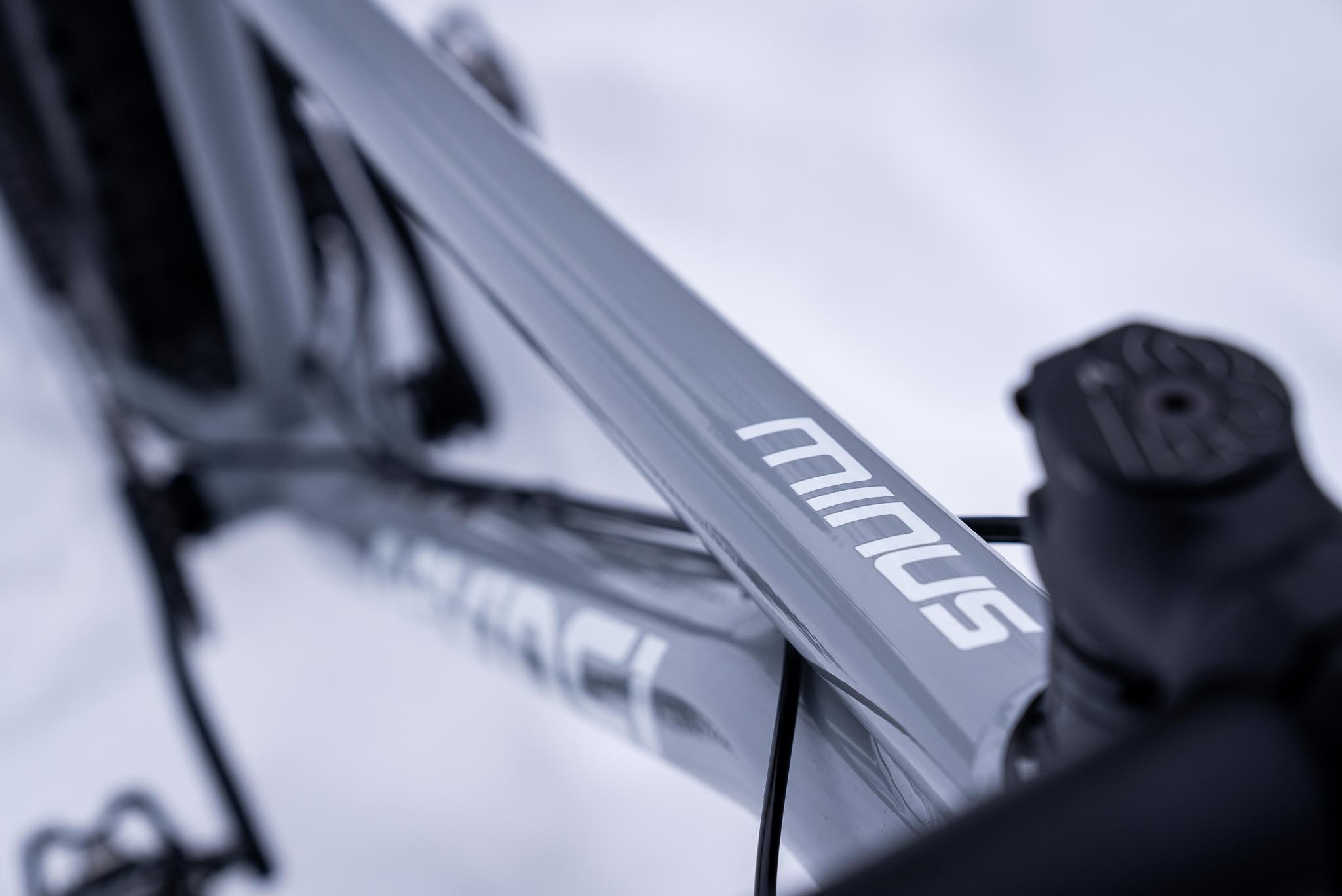

Made in Canada Aluminum frame
Canada-made 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout stenght-to-weight ratio exclusive to Devinci bikes.
Carbon Fork *on NX model
Stiff and ultralight for unmatched handing.
Threaded BB
Threaded BB for headache-free removal and easy maintenance.
Updated Geometry
Modern fat bike geometry featuring a longer reach and slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
Lifetime warranty
Riding passions last a lifetime. Now your bike does too.
Dropper post compatibility
31.6mm dropper post
S: 150 M: 175 L: 200 XL :200
12 x 197mm rear spacing
Frames designed around 12 x 197mm offer ample tire clearance so you can take advantage of improved wheel stiffness.
26 x 4.8'' Maximum tire clearance
26 x 4.8 provide a large footprint for added traction in loose condition like snow.
Dual Thru-Axles
Front and rear thru-axles provide increased stiffness at the wheels, which means more precise steering and improved control.
